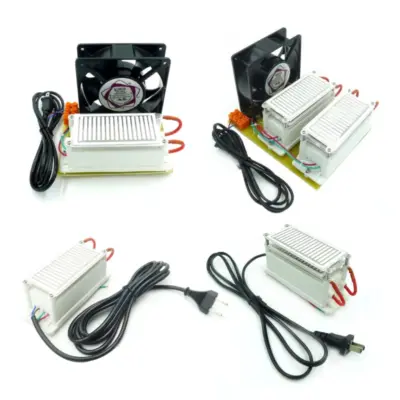

8/16/32g/h DIY 304 Stainless Steel Ozone Plates with Power Supply and Fan
Feeding In: Dry air and oxygen best
Ozone Plate Material: Ceramic
Voltage (V): 220V/110V
Warranty: 1 Year
Type: Ozone Generator
- Free Shipping
- 1 Month Warranty
- Secure Payment
Description

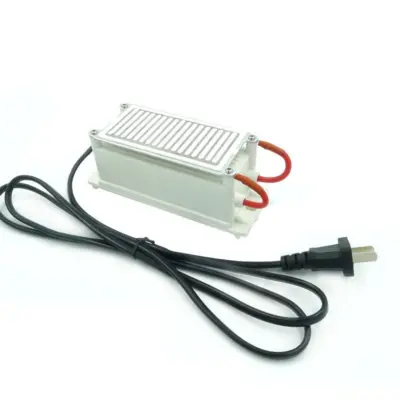

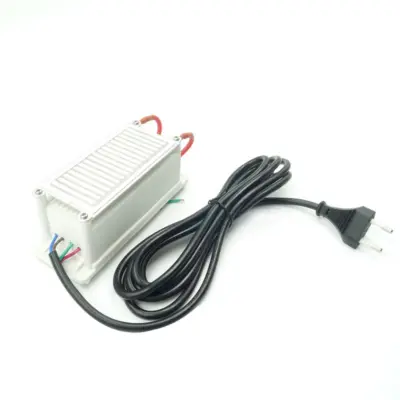

8g/h stainless steel ozone plate with power with wires
|
Feeding In |
Dry air and oxygen best |
|
Size of Shell |
145mm*55mm*56mm |
|
Size of Plate |
105*50mm |
|
O3 Output |
8g/hour(under air circumstance) |
|
Warranty |
1 Year |
|
Input |
AC110V, 220V,DC :12V,24V |
|
Frequency |
Input 50/60hz, Out Put 18khz |
|
Output Voltage |
3.1KV |
|
Power |
55W |
|
Hole Distance |
13.5cm |
|
Ozone Plate Material |
Ceramic |
|
Plug Wire Size |
1.5m |

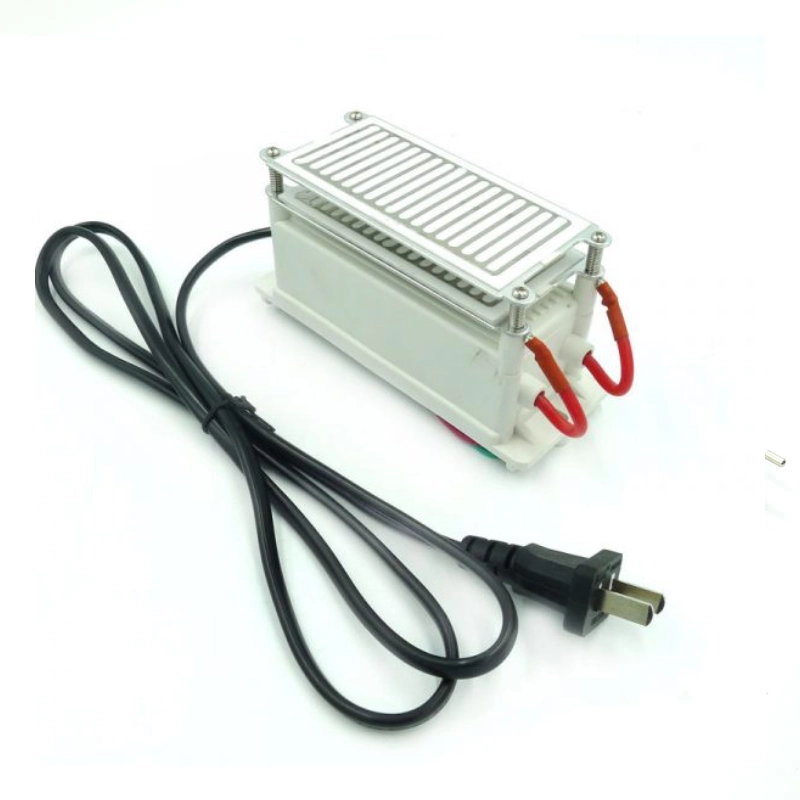

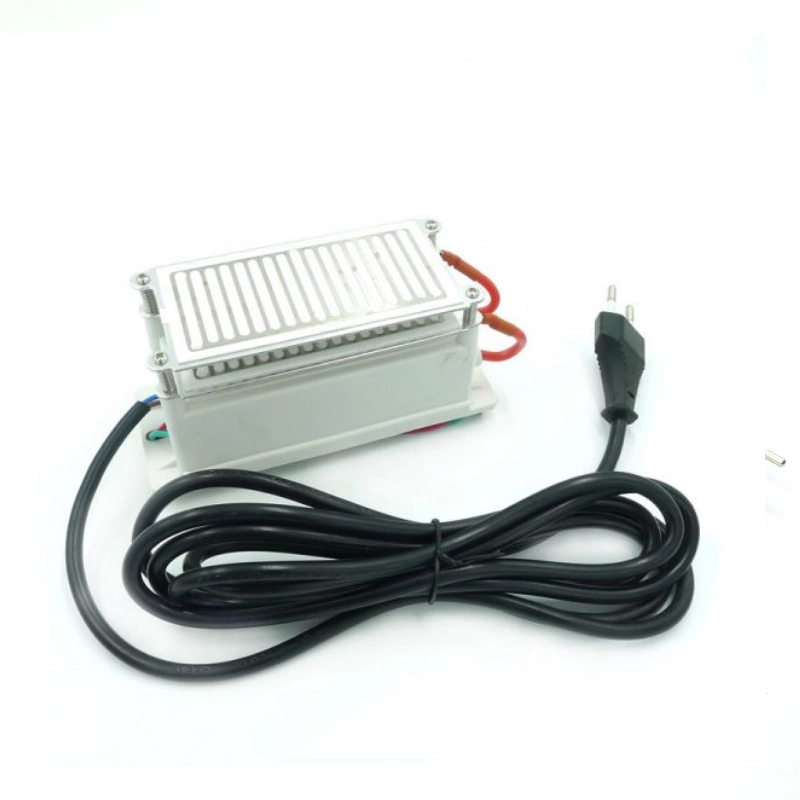

16g/h Stainless Steel Ozone Plates with Circuit
|
Feeding In |
Dry air and oxygen best |
|
Size of Shell |
145mm*55mm*56mm |
|
Size of Plate |
105*50mm |
|
O3 Output |
16g/hour(under air circumstance) |
|
Input |
AC110V, 220V,DC :12V,24V |
|
Power |
80W |
|
Hole Distance |
13.5cm |
|
Ozone Plate Material |
Stainless Steel |
|
The Principle of Operation |
Corona Discharge |
|
Plug Wire Size |
1.5m |

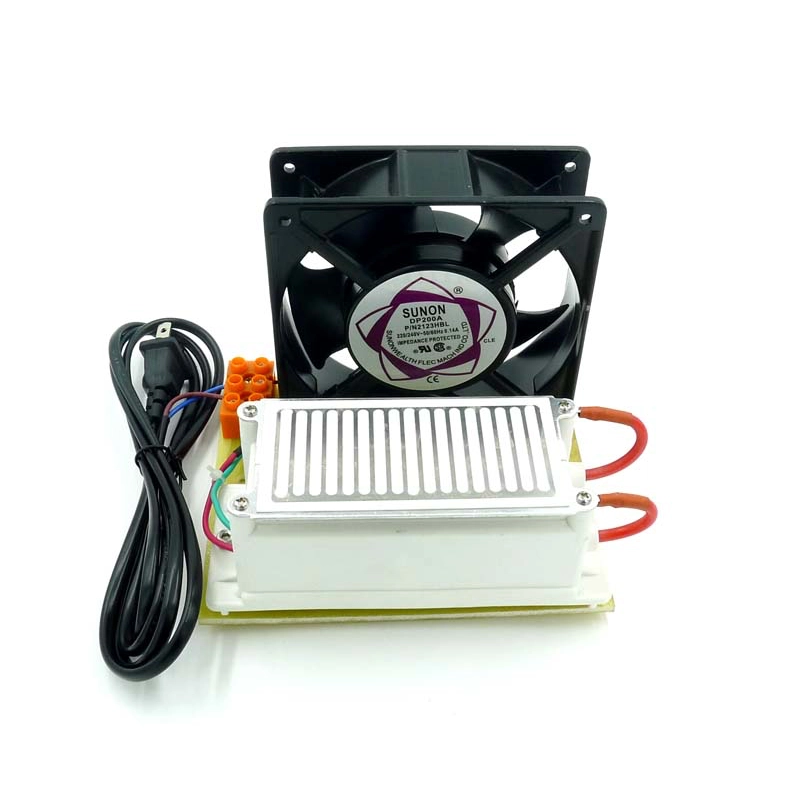

8g/h DIY Ozone Generator
|
Capacity (CFM) |
70 |
|
Power (W) |
55 |
|
Voltage (V) |
220V/110V |
|
Warranty |
1 Year |
|
Type |
Ozone Generator |
|
Application |
Hotel, Car, Garage, Commercial, Household |
|
Power Source |
Electric |
|
Recommended Room Size（square feet） |
70 |
|
Air Quality Display |
No |
|
Product Name |
8mg/h DIY Ozone Generator Air Purifier |
|
Function |
Remove Odor |
|
Plate Material |
Ceramic Plate |
|
Ozone Output |
5000mg/h |
|
Plate Size |
48*22mm |
|
Fan Size |
118*118*50mm |
|
Product Size |
154*126*125mm |

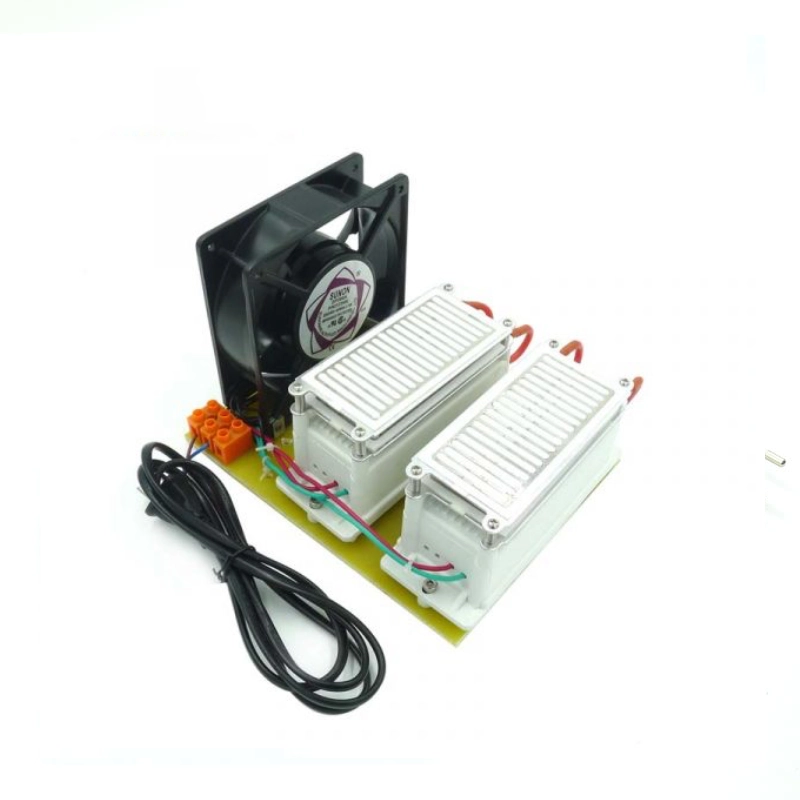

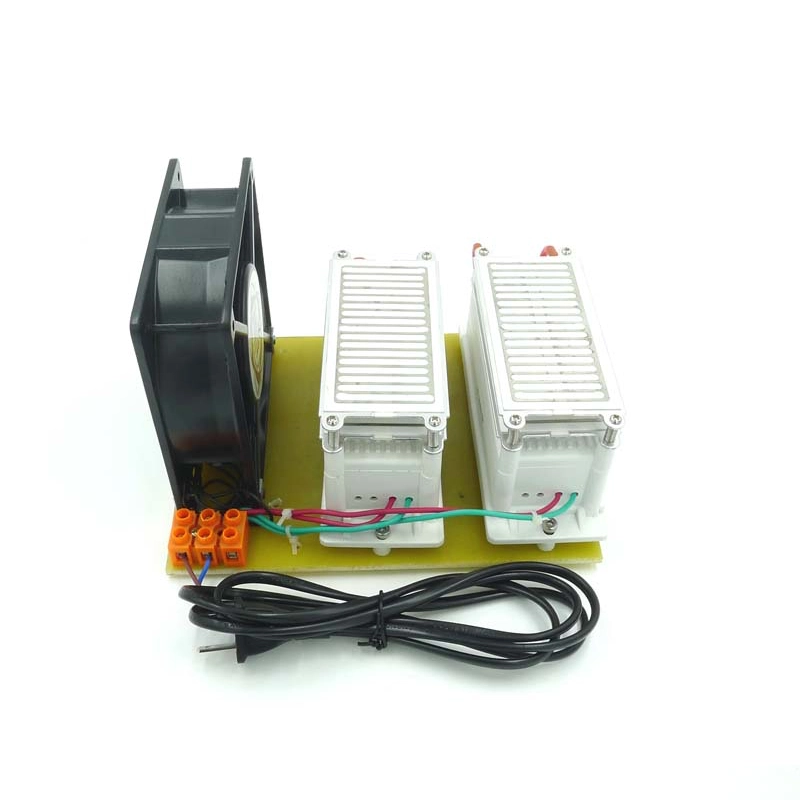

32g Stainless Steel Ozone Plates with Circuit
|
Capacity (CFM) |
70 |
|
Power (W) |
55 |
|
Voltage (V) |
220V/110V |
|
After-sales Service Provided |
Free spare parts |
|
Warranty |
1 Year |
|
Type |
Ozone Generator |
|
Application |
Hotel, Car, Garage, Commercial, Household |
|
Power Source |
Electric |
|
Recommended Room Size（square feet） |
70 |
|
Air Quality Display |
No |
|
Function |
Remove Odor |
|
Plate Material |
Stainless Steel ozone plate |
|
Plate Size |
48*22mm |
|
Fan Size |
118*118*50mm |
|
Product Size |
154*126*125mm |
Additional
| Dimensions | N/A |
|---|---|
| Output | 8g/h with Power, 16g/h with Power, 8g/h 1 Plate with Power & Fan, 32g/h with Dual Power & Fan |
| Voltage (V) | AC110V, 220V |
